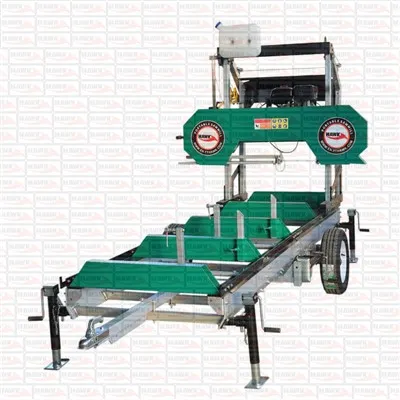

[Desel Cav Portable Sawmill
Kev ntseeg siab bandsaw zeb muaj cov sawyers kev lag luam thiab kev daws teeb meem kom tau raws li lawv cov kev xav tau milling. Los ntawm cov txheej txheem hmoov-coated mus rau txhim khu kev qha Kohler roj cav, lub zeb no yuav tshaj qhov koj xav tau.
Muaj nuj nqi
Kev ntseeg siab bandsaw zeb muaj cov sawyers kev lag luam thiab kev daws teeb meem kom tau raws li lawv cov kev xav tau milling. Los ntawm cov txheej txheem hmoov-coated mus rau txhim khu kev qha Kohler roj cav, lub zeb no yuav tshaj qhov koj xav tau. Lub taub hau txav nce thiab nqis raws galvanized steel channel ntawm ib qho yooj yim heev tig tes crank system. Cov hniav yog khaws cia lubricated los ntawm kev siv lub drip system. Qhov no tiv thaiv sap ntawm gumming li koj cov hniav.
|
Qauv |
HS 26 G |
HS 31 G |
HS 26 E |
HS 31 E |
|
Hwj chim |
Roj av |
Roj av |
Hluav taws xob |
Hluav taws xob |
|
Kev khiav tawm |
301cc ua |
420cc ua |
400V 50HZ 3 theem |
|
|
Txiav muaj peev xwm |
660 * 178 * 2794mm (26 "* 7" * 110") |
790 * 178 * 2794 hli |
660 * 178 * 2794 hli |
790 * 178 * 2794 hli (31 "* 7" * 110") |
|
Ncej |
4pcs ib |
4pcs ib |
4pcs ib |
4pcs ib |
|
Hniav loj |
369 0 * 34 * 0.9 hli (145 "*{5}}/4""*0.035") |
369 0 * 34 * 0.9 hli (156 "*{5}}/4""*0.035") |
369 0 * 34 * 0.9 hli (145 "* 1.25" "* 0.035") |
369 0 * 34 * 0.9 hli (156 "*{5}}/4""*0.035") |
|
Standard khiav loj |
4000x900mm (157 "x35.4") |
4000x1030mm (157 "x 40.5") |
4000x900mm (157 "x35.4") |
4000x1030mm (157 "x 40.5") |
|
Ntim |
2080x570x830mm |
2150x570x830mm |
2080x610x810mm |
2150x610x810mm |
|
Safe txiav ceev |
13-15s/m |
13-15s/m |
||
|
Hniav ceev |
17m / min |
17m / min |
||
|
Dimension |
4064 * 1778 * 1800mm (160 "* 70" * 71") |
4064 * 1778 * 1800mm (160 "* 70" * 71") |
||
|
Hniav Log Dia. |
480 hli (18.8 ") |
480 hli (18.8 ") |
||
|
Cov hniav nyob deb |
22mm (086") |
22mm (086") |
||
|
Qhov hnyav |
315/355 kg |
352/380 Kg |
||
1. Lub tshuab muaj cov yam ntxwv ntawm kev txiav ceev, siab txiav tus nqi, siab zoo ntawm cov khoom kawg, zoo heev txo qhov poob ntawm sawdust.
2. Nws yog ib qho yooj yim rau nruab, yooj yim rau kev khiav lag luam, txuag zog, thiab kev tsim khoom siab.
3. Yooj yim, nyab xeeb thiab zoo ib puag ncig;
4. Tsis siv neeg tswj cov ntoo thickness, high-precision.
5. Siab txiav efficiency, du; siab flatness ntawm txiav phaj;
6. Lub thickness ntawm kev ua ntoo tuaj yeem hloov kho raws li koj xav tau
7. Cov neeg ua haujlwm zoo tib yam tuaj yeem ua lub tshuab ua haujlwm tau zoo.
